Donkin Reduced Bore Ball Valves PN4
PE Spigot Both Ends
Andy Hatton
National Sales Manager – Gas
PE Ended Ball Valve to GIS/V4. Maximum Working Pressure PE Tails 4 Bar (60psig). Temperature range: -10°C to +40°C

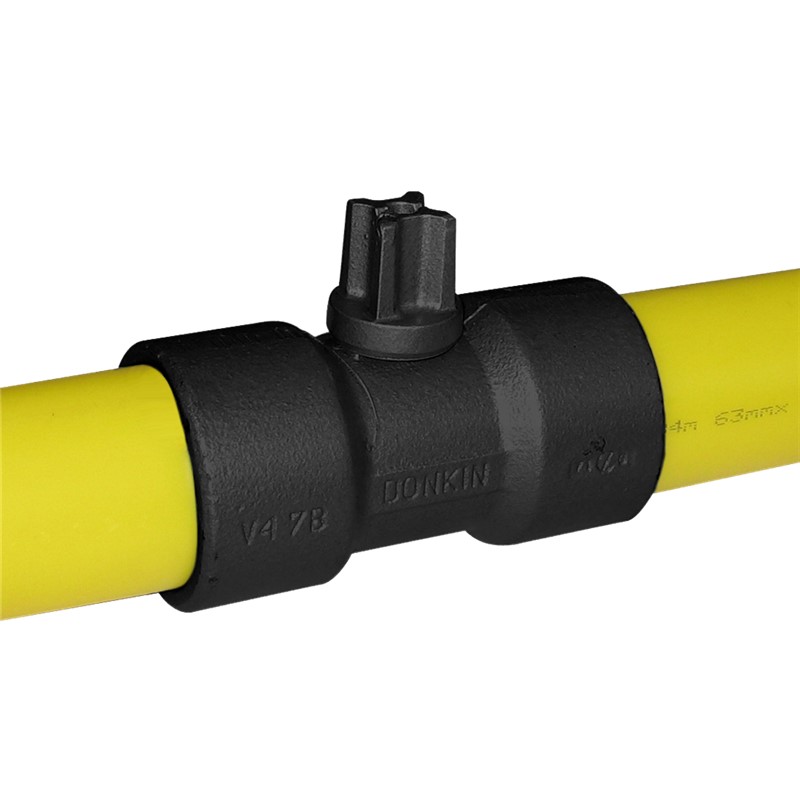

The Series 451, gas service isolation valve, PE spigot both ends, is a high quality ball valve for the isolation of gas services to domestic and commercial premises. It is designed to meet the requirements of GIS/V4 and GIS/PL3 Part 1.
| Variant 451/70-001 | |
|---|---|
| Connection: | PE Pipe Ends |
| Material: | Ductile Iron |
| DN: | DN32 - DN63 |
| PN: | PN 4 |
| Closing direction: | Clockwise to Close |
Features
- PE spigot both ends PE80
- Maintenance free compact design.
- High integrity, one piece SG iron body.
- Corrosion resistant construction.
- High torque design to preventunauthorised operation.
- 19mm square false cap as standard.
- Kitemark™ approved to GIS/V4 and GIS/PL3 Part 1.
- Seal in false cap skirt to prevent ingress of dirt.
- Where covered by the requirements of the Pressure Equipment Directive these products are produced in full compliance and carry CE marking (dependant up size).
- Embodied carbon content available uppon request
Options
- Available screwed both ends or combination of PE/screwed connections
- Extra long PE tailpieces.
- Option of 25mm false cap.
- Option of lever operation.
- PE100 Tailpieces
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance
Guidelines
Price list

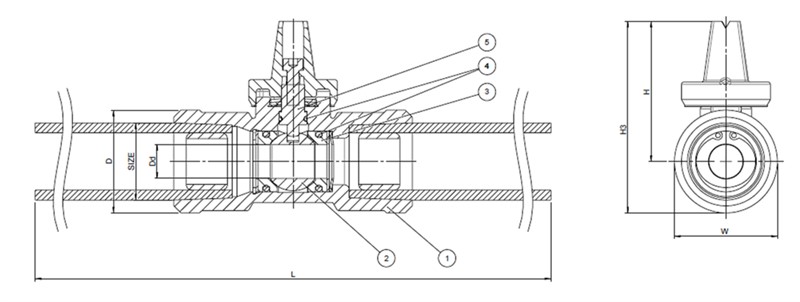

Reference nos. and dimensions:
Scroll for more info
| Ref. no. | D mm |
Dd mm |
H mm |
H3 mm |
L mm |
W mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|
| 451-032-05-7213001 | 43 | 14.5 | 73 | 94.5 | 302 | 43 | 1.3 |
| 451-063-05-7213001 | 71 | 30 | 84 | 119.5 | 436 | 71 | 3.7 |
Enquiry
Scroll for more info
Components
| 1. | Body | Ductile iron GJS-400-15 |
| 2. | Ball | Stainless steel |
| 3. | Seat | PTFE 15% Graphite |
| 4. | O-ring | NBR rubber |
| 5. | Washer | Stainless steel |
Test/Approvals
- Approved according to Kitemark™ GIS/PL3, certificate KM 518241
- Approved according to Kitemark™ GIS/V4 KM 518471
Standards
- Designed according to GIS/PL3, Designed according to GIS/V4
