DONKIN METER MODULE RISER FITTING
Meter module riser fitting. Temperature range: -20°C to + 40°C. MOP 5.5 barg - PE 80 SDR11, 2 barg - PE 80 SDR17, 7 barg - PE100 SDR11, GIS/PL3
The Donkin Series 218 Meter Module Riser Fittings are transition fittings designed to connect the underground PE pipework to the Emergency Control Valve at the inlet of a Meter Module. They can also be used on the outlet pipework to transition back to PE from the steel. Small diameters are available with threaded ends and the larger sizes with PN16 flanges for easy connection.
| Variant 218/41-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Steel |
| DN: | DN25 - DN250 |
| PN: | PN 7 |
Features
-
˂ 63mm x 2" - Mild Steel with BS21 male screwed connection.
-
≥ 63mm x DN50 EN1092-2 PN16 Flange - Mild Steel with a loose flange ring.
- PE 80 pipe to GIS/PL2: Part 2.
- Positioning plate to secure the fitting to the concrete pad.
- GIS/PL3 approved joint connecting PE Pipe to steel body.
- Steel body, fusion bonded epoxy coated.
- Split flange ring for easy connection to valve flange
- Fully compliant with dimensions set out in SER/8 specification
- Embodied carbon data available upon request.
- Options
- Other flange drillings on request
- PE100 pipe
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance
Price list

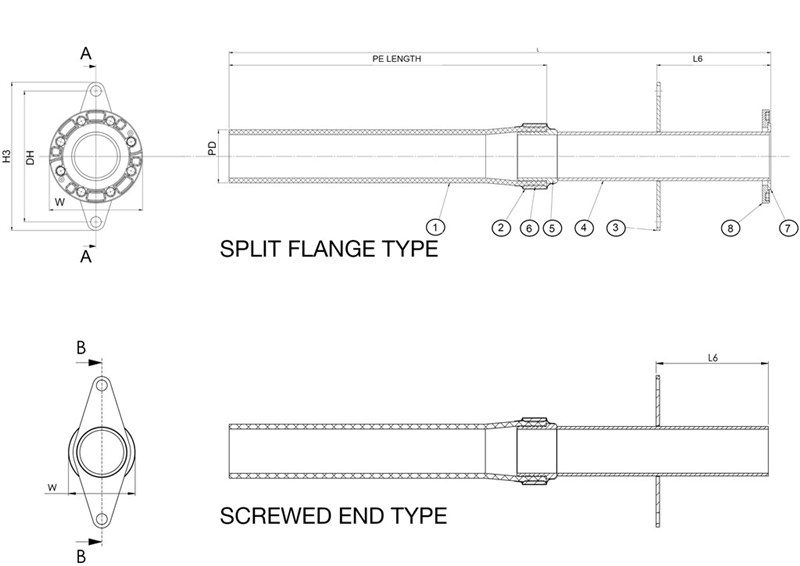

Reference nos. and dimensions:
Scroll for more info
| Ref. no. | Connection |
Dh mm |
H3 mm |
L mm |
L6 mm |
Pipe dia. mm |
PE Length mm |
SDR |
W mm |
|---|---|---|---|---|---|---|---|---|---|
| 218-0250-050-07-0102 | R3/4 | 164 | 200 | 1276 | 170 | 25 | 750 | 11 | 46 |
| 218-0321-050-07-0102 | R1 | 164 | 200 | 1276 | 170 | 32 | 750 | 11 | 52 |
| 218-0632-050-07-0102 | DN50 | 214 | 250 | 1276 | 170 | 63 | 750 | 11 | 165 |
| 218-0632-050-07-0202 | DN50 | 214 | 250 | 1276 | 170 | 63 | 750 | 11 | 165 |
| 218-0632-050-07-1202 | DN50 | 214 | 250 | 1276 | 170 | 63 | 750 | 11 | 165 |
| 218-0903-050-07-0202 | DN80 | 269 | 310 | 1277 | 295 | 90 | 750 | 11 | 200 |
| 218-0903-050-07-1202 | DN80 | 269 | 310 | 1277 | 295 | 90 | 750 | 11 | 200 |
| 218-0904-050-07-0202 | DN100 | 309 | 350 | 1277 | 269 | 90 | 750 | 11 | 220 |
| 218-0904-050-07-1202 | DN100 | 309 | 350 | 1277 | 269 | 90 | 750 | 11 | 220 |
| 218-1254-050-07-0202 | DN100 | 309 | 350 | 1275 | 269 | 125 | 750 | 11 | 220 |
| 218-1254-050-07-1202 | DN100 | 309 | 350 | 1275 | 269 | 125 | 750 | 11 | 220 |
| 218-1256-050-07-0202 | DN150 | 409 | 450 | 1275 | 231 | 125 | 750 | 11 | 285 |
| 218-1806-050-07-0202 | DN150 | 409 | 450 | 1278 | 231 | 180 | 750 | 11 | 285 |
| 218-1806-050-07-1202 | DN150 | 409 | 450 | 1278 | 231 | 180 | 750 | 11 | 285 |
| 218-1806-050-07-2202 | DN150 | 409 | 450 | 1278 | 231 | 180 | 750 | 17 | 285 |
| 218-1808-050-07-1202 | DN200 | 509 | 550 | 1278 | 256 | 180 | 750 | 11 | 180 |
| 218-1808-050-07-2202 | DN200 | 509 | 550 | 1278 | 256 | 180 | 750 | 17 | 340 |
| 218-2508-050-07-1202 | DN200 | 509 | 550 | 1288 | 256 | 250 | 750 | 11 | 340 |
| 218-2508-050-07-2202 | DN200 | 509 | 550 | 1288 | 256 | 250 | 750 | 17 | 340 |
| 218-2509-050-07-1202 | DN250 | 609 | 650 | 1288 | 218 | 250 | 750 | 11 | 405 |
| 218-2509-050-07-2202 | DN250 | 609 | 650 | 1288 | 218 | 250 | 750 | 17 | 405 |
Enquiry
Scroll for more info
Components
| 1. | Pipe | PE |
| 2. | Shrink Sleeve | Polyolefin |
| 3. | Bracket | Mild steel |
| 4. | Body | Mild steel |
| 5. | Spigot | Mild steel |
| 6. | Sleeve | Mild steel |
| 7. | Raised Face | Mild steel |
| 8. | Split flange | Ductile iron |
Test/Approvals
- Pneumatic test to 1.1 x PN
- Made in Great Britain
- Approved according to Kitemark™ GIS/PL3, KM 575498
Standards
- Designed according to GIS/PL3, T/SP/SER/8
- Standard flange drilling to EN1092 (ISO 7005-2), PN 16
