AVK METAL SEATED GATE VALVE, FLANGED, PN10/16

SS stem, alu-bronze seat, galv. 8.8 bolts, S&C, CTC/CTO, by-pass, blue FBE/2-pack coating

Mamoun Humayra, AVK UK Product Manager - Water

Mamoun Humayra

Water Product Manager

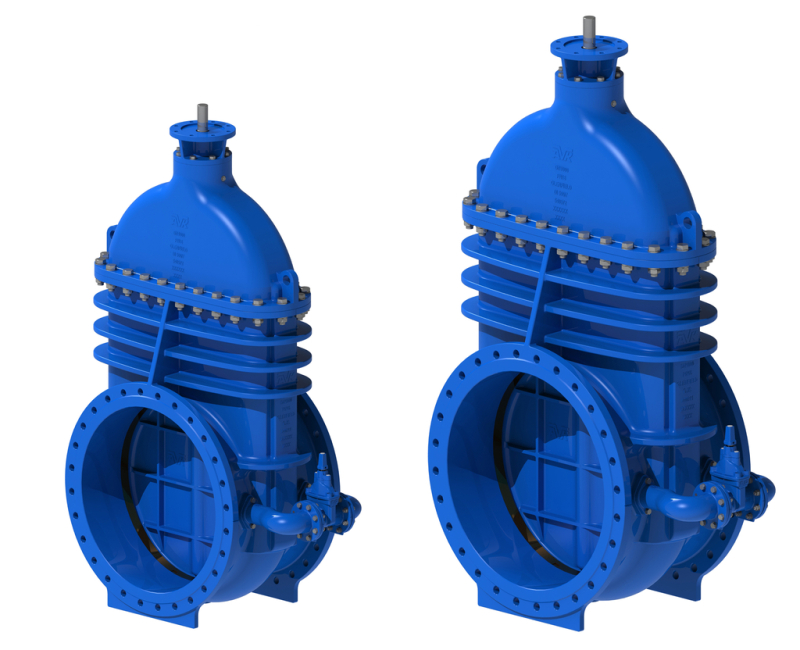

Metal seat gate valve with by-pass for neutral liquids like drinking water and treated waste water free from solids and fibrous impurities, max. 70°C

AVK series 54 gate valves are designed with built-in safety and quality in every detail. The metal valve seat is resistant to high temperatures in the medium and will not deform during long periods of compression. This ensures stable and reliable operation over the long life span of the valve.

Variant 54/7374-001
Connection: Flanged
Material: Ductile Iron
DN: DN700 - DN1200
PN: PN 16

Features

  • Bronze wedge nut with lubricating abilities providing optimum compatibility with stem
  • Metal faces machined to a high finish for optimum contact and minimum leakage
  • Copper alloy shoes and channels provide low friction guides for the wedge when opening and closing
  • A large through bore housing for the stem in the wedge prevents stagnant water or impurities
  • Stainless steel stem increased corrosion resistance
  • Stainless steel thrust washer, bronze thrust collar and thrust bearing provides fixation of the stem and thrust with low free running torque
  • NBR wiper ring prevent the ingress of foreign matter
  • Seal housing incorporates inner/outer O-ring seals for long life operation
  • Round body-bonnet O-cord gasket fixed in a recess to avoid blow-out
  • All rubber and coating in contact with the water are drinking water approved
  • Full bore
  • Lifting eyes for easy handling
  • DN700-1000 protected by 250µm blue fusion bonded epoxy coating; DN≥1100 protected by 250µm blue 2-pack epoxy coating
  • A by-pass valve is fitted to reduce differential pressure and facilitate operation

Downloads

Datasheet
Certificate(s)
Installation, Operation & Maintenance
Price list

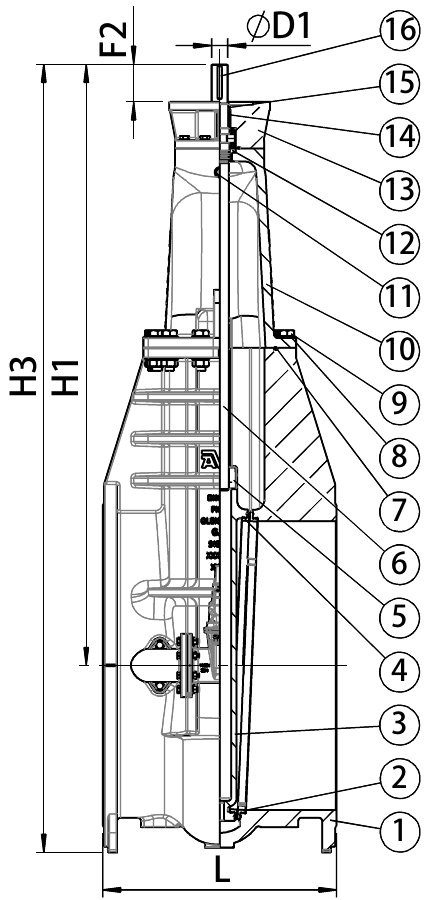

Reference nos. and dimensions:

Scroll for more info
Ref. no. DN
mm		 Operating
Direction		 Flange
drillling		 L
mm		 H1
mm		 H3
mm		 W
mm		 W1
mm		 F2
mm		 D1
mm		 ISO
Flange		 Theoretical
weight/kg
54-0700-73-0101101 700 CTC PN10 610 1526 1981 1358 724 72 45 F14 1275
54-0700-73-0102101 700 CTC PN10 610 1539 1994 1358 724 85 45 F16 1283
54-0700-73-0103101 700 CTC PN10 610 1559 2014 1358 724 105 45 F25 1283
54-0700-73-1102101 700 CTC PN16 610 1539 1994 1358 724 85 45 F16 1283
54-0700-73-1103101 700 CTC PN16 610 1559 2014 1358 724 105 45 F25 1283
54-0700-74-0101101 700 CTO PN10 610 1526 1981 1358 724 72 45 F14 1275
54-0700-74-0102101 700 CTO PN10 610 1539 1994 1358 724 85 45 F16 1283
54-0700-74-0103101 700 CTO PN10 610 1559 2014 1358 724 105 45 F25 1283
54-0700-74-1102101 700 CTO PN16 610 1539 1994 1358 724 85 45 F16 1283
54-0700-74-1103101 700 CTO PN16 610 1559 2014 1358 724 105 45 F25 1283
54-0800-73-0101101 800 CTC PN10 660 1713 2248 1488 798 72 48 F14 1711
54-0800-73-0102101 800 CTC PN10 660 1726 2261 1488 798 85 48 F16 1719
54-0800-73-0103101 800 CTC PN10 660 1746 2281 1488 798 105 48 F25 1719
54-0800-73-1103101 800 CTC PN16 660 1746 2281 1488 798 105 48 F25 1719
54-0800-74-0101101 800 CTO PN10 660 1713 2248 1488 798 72 48 F14 1711
54-0800-74-0102101 800 CTO PN10 660 1726 2261 1488 798 85 48 F16 1719
54-0800-74-0103101 800 CTO PN10 660 1746 2281 1488 798 105 48 F25 1719
54-0800-74-1103101 800 CTO PN16 660 1746 2281 1488 798 105 48 F25 1719
54-0900-73-0101101 900 CTC PN10 711 1863 2459 1603 838 72 52 F14 2234
54-0900-73-0102101 900 CTC PN10 711 1876 2472 1603 838 85 52 F16 2242
54-0900-73-0103101 900 CTC PN10 711 1896 2492 1603 838 105 52 F25 2243
54-0900-73-1103101 900 CTC PN16 711 1896 2492 1603 838 105 52 F25 2243
54-0900-74-0101101 900 CTO PN10 711 1863 2459 1603 838 72 52 F14 2234
54-0900-74-0102101 900 CTO PN10 711 1876 2472 1603 838 85 52 F16 2242
54-0900-74-0103101 900 CTO PN10 711 1896 2492 1603 838 105 52 F25 2243
54-0900-74-1103101 900 CTO PN16 711 1896 2492 1603 838 105 52 F25 2243
54-1000-73-0102101 1000 CTC PN10 813 2037 2685 1707 895 85 56 F16 2854
54-1000-73-0103101 1000 CTC PN10 813 2057 2705 1707 895 105 56 F25 2854
54-1000-73-1103101 1000 CTC PN16 813 2057 2705 1707 895 105 56 F25 2854
54-1000-73-1104101 1000 CTC PN16 813 2082 2730 1707 895 130 56 F30 2871
54-1000-74-0102101 1000 CTO PN10 813 2037 2685 1707 895 85 56 F16 2854
54-1000-74-0103101 1000 CTO PN10 813 2057 2705 1707 895 105 56 F25 2854
54-1000-74-1103101 1000 CTO PN16 813 2057 2705 1707 895 105 56 F25 2854
54-1000-74-1104101 1000 CTO PN16 813 2082 2730 1707 895 130 56 F30 2871
54-1100-73-0303101 1100 CTC PN10 811 2244 2944 1793 930 110 70 F25 3959
54-1100-73-1303101 1100 CTC PN16 811 2244 2944 1793 930 110 70 F25 3959
54-1100-73-1304101 1100 CTC PN16 811 2264 2964 1793 930 130 70 F30 3964
54-1100-74-0303101 1100 CTO PN10 811 2244 2944 1793 930 110 70 F25 3959
54-1100-74-1303101 1100 CTO PN16 811 2244 2944 1793 930 110 70 F25 3959
54-1100-74-1304101 1100 CTO PN16 811 2264 2964 1793 930 130 70 F30 3964
54-1200-73-0303101 1200 CTC PN10 914 2402 3175 2035 1037 105 64 F25 4792
54-1200-73-0304101 1200 CTC PN10 914 2412 3185 2035 1037 115 64 F30 4796
54-1200-73-1304101 1200 CTC PN16 914 2412 3185 2035 1037 115 64 F30 4796
54-1200-73-1305101 1200 CTC PN16 914 2452 3225 2035 1037 155 64 F35 4802
54-1200-74-0303101 1200 CTO PN10 914 2402 3175 2035 1037 105 64 F25 4792
54-1200-74-0304101 1200 CTO PN10 914 2412 3185 2035 1037 115 64 F30 4796
54-1200-74-1304101 1200 CTO PN16 914 2412 3185 2035 1037 115 64 F30 4796
54-1200-74-1305101 1200 CTO PN16 914 2452 3225 2035 1037 155 64 F35 4802
3D drawings
Enquiry
Scroll for more info

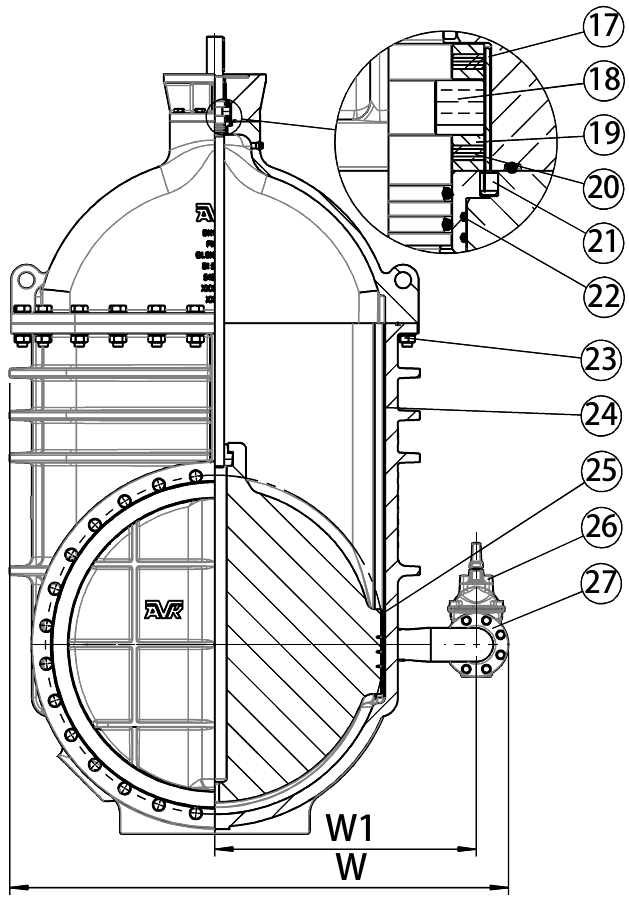

Components

1. Body Ductile Iron GJS-500-7
2. Seat ring Alu-bronze CC331G (AB1)
3. Wedge Ductile Iron GJS-500-7
4. Face ring Alu-bronze CC331G (AB1)
5. Wedge nut Alu-bronze CC333G (AB2)
6. Stem Stainless steel 1.4057 (431)
7. O-ring EPDM
8. Washer Hot dip galvanized steel
9. Bolt Hot dip galvanized steel
10. Bonnet Ductile Iron GJS-500-7
11. Plug Stainless steel
12. Seal retainer Alu-bronze CW307G
13. Housing Ductile Iron GJS-500-7
14. Seal retainer Bronze CC491K (LG2)
15. Wiper ring NBR rubber
16. Key Stainless steel A2-70
17. Radial bearing PA 6.6
18. Thrust collar Alu-bronze CW307G
19. Thrust washer Stainless steel 1.4057 (431)
20. Thrust bearing Bronze/PTFE composite
21. Grooved pin Stainless steel A4-70
22. O-ring EPDM
23. Nut Hot dip galvanized steel
24. Channel Copper alloy
25. Shoe Copper alloy
26. By-Pass valve
27. By-pass bend Ductile Iron GJS-500-7
28. Bolt Stainless steel A4-70
29. Plug Alu-bronze CW307G
30. Washer Brass
31. Nut Stainless steel A4-70

Test/Approvals

  • Hydraulic test according to EN 1074-1 / EN 12266

Standards

  • Designed according to BS EN 1074 -1 and 2
  • Standard flange drilling to EN1092, PN 10/16
  • WIMES 8.09 Compliant
  • Reg 31 compliant
  • WRAS Approved Product DN350-900
  • WRAS Approved Materials DN>900
