AVK GATE VALVE, PE PIPE ENDS, PN16

Black/blue SDR11 PE100 pipes, ASW VIDI-Positioner, NB-IoT version

Anthony Whittam AVK UK Network Water Specialist

Anthony Whittam

Head of Smart Water and Pressure Management

Gate valve with PE100 PN16 SDR11 pipes with stem of SS1.4021. For water and neutral liquids to max. 20° C. 10% solid matter. Note: The maximum working temperature is set according to the ISO9080 lifetime requirements for PE pipes, and is therefore not the max. temperature for the valve.

The 36/89-003 Smart Water resilient seat, wedge gate valve for isolation purposes. These valves are equipped with a VIDI Positioner, a smart device for indicating the position of gate valves and whether it is open, close, or any percentage in between and transmits the data wirelessly. Based on the data provided, water utilities can optimise the operation of the water distribution network, asset auditing, efficiently lower water loss.

Variant 36/89-003
Connection: PE Pipe Ends
Material: Ductile Iron
DN: DN80 - DN200
PN: PN 16
Closing direction: Clockwise to Close

Features

  • Communication: NB-IoT (band 8 & 20) or LoRa® (868MHz).
  • Detects the position of the valve and transmits data and alerts to the VIDI Cloud or a third-party software.
  • Cap top as standard.
  • Fitted with an AVK status indicator - see product reference 3004/100-001
  • Fixed integral wedge nut prevents vibration and ensures durability
  • Wedge fully vulcanized with drinking water approved EPDM rubber and equipped with wedge shoes to provide smooth operation
  • Stem of SS 1.4021 and rolled threads for high strength
  • Full circle thrust collar provides fixation of the stem and low free running torques
  • Triple safety stem sealing with an NBR wiper ring, a polyamide bearing
  • Round EPDM bonnet gasket fixed in a recess
  • Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket
  • Full bore
  • Low operating torque
  • Blue fusion bonded epoxy coating.
  • A standard PE pipe is pressed onto the grooved valve end, locked with a steel ring and sealed with a plastic shrink hose. The boltless, full bore PE end connection is tensile resistant and stronger than the PE pipe itself. The PE pipe end enables direct welding into PE pipes resulting in a fast and secure assembly.
  • Note: For higher working temperatures than max. 20°C expect a reduction of the PE pipe’s lifetime. Refer to the pipe manufacturer for further information

Downloads

Datasheet
Certificate(s)
Installation, Operation & Maintenance
Price list

Reference nos. and dimensions:

Scroll for more info
Ref. no. DN
mm		 D
mm		 H
mm		 H3
mm		 L
mm		 PE Length
mm		 W
mm		 Theoretical
weight/kg
36-090-89-3632699910 80 90 343 401 876 255 173 14
36-125-89-3632699910 100 125 364 449 850 275 222 23
36-180-89-3632699910 150 180 454 562 1009 265 274 36
36-225-89-3632699910 200 225 544 678 1047 265 334 75
3D drawings
Enquiry
Scroll for more info

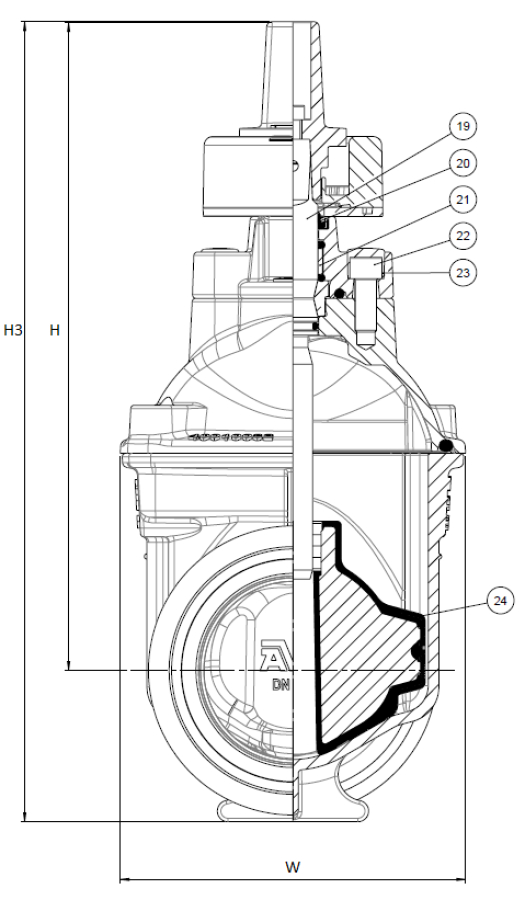

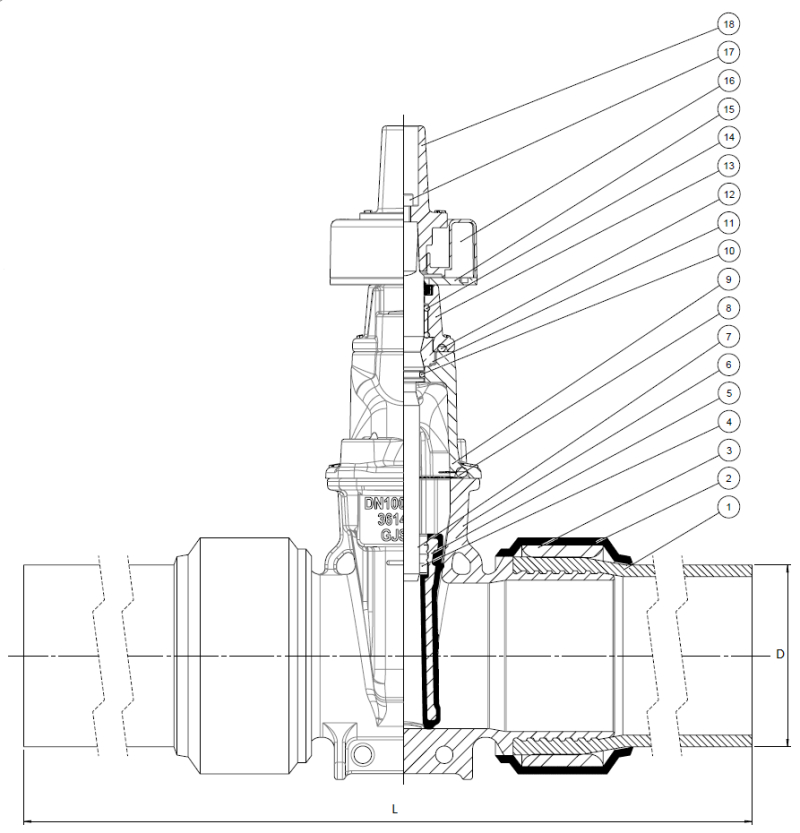

Components

1. Pipe PE
2. Shrink hose Neoprene
3. Sleeve Steel
4. Wedge rubber EPDM
5. Wedge core Ductile iron GJS-450-10
6. Body Ductile iron GJS-500-7
7. Wedge nut Brass CW602N
8. Bonnet gasket EPDM
9. Bonnet Ductile iron GJS-500-7
10. O-ring EPDM
11. Thrust collar Brass CW602N
12. O-ring EPDM
13. Gland flange Ductile iron GJS-500-7
14. O-ring EPDM
15. Fixation plate ASA plastic Luran S 778T
16. Position indicator ASA plastic Luran S 778T
17. Bolt Steel 8.8
18. Stem Cap Cast iron
19. Stem Stainless steel
20. Wiper ring NBR rubber
21. Bushing PA
22. Bolt Steel 8.8
23. Seal Hot melt glue
24. Wedge shoe PA

Test/Approvals

  • Seat: 1.1 x PN (in Bar), Body: 1.5 x PN (in Bar). Closing torque test.

    |

    Hydraulic test according to EN 1074-1 and 5/ EN12266, seat: 1.1 x PN (in bar), body 1.5 x PN (in bar)

  • Drinking Water Inspectorate Regulation 31 compliant
  • WRAS approved Materials
  • Made in Great Britain

Standards

  • Designed according to BS5163/B, Designed according to BS EN 1074 -1 and 2
0 Files In the package
