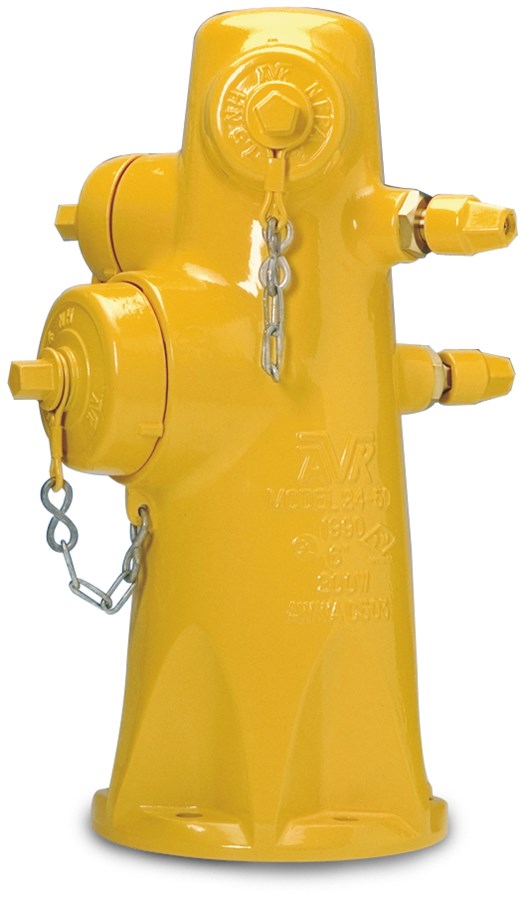

AVK HIGH PRESSURE, 200 PSI WET BARREL HYDRANT
With 1 x 2½" + 2 x 4/4½" outlets to AWWA C 503
AVK wet barrel hydrant is designed to be a trouble free, easy to maintain hydrant. The hydrant is rated for a
working pressure of 200 psi, is UL listed and FM approved, and meets or exceeds the requirements of the
AWWA C503 standard for wet barrel fire hydrants (where applicable). AVK series 24 hydrant and hydrant tools
are designed so that one person can perform all routine repairs and maintenance outlined in the manual.
| Variant 24/2X-001 | |
|---|---|
| Connection: | No connection type specified |
| Material: | Ductile Iron |
| PN: | AWWA C503 |
| Closing direction: | Clockwise to Close |
Features
- Operating nuts: 1 1/2” pentagon
- Outlets: 1 x 2 1/2” NST hose outlets, 1 x 4” or 1 x 4 1/2” NST male pumper outlet
- Inlet: 6” AWWA flange inlet (standard)
- UL listed and FM approved
- Meets or exceeds AWWA C503 (latest)
- High pressure rating (200 psi)
- Ductile iron nozzle section
- Each stem sealed with two O-rings
- Replaceable cast iron dummy nuts for extra stem protection
- Removable nozzles secured with external stainless steel allen screws
- Fusion bonded polyester coating red RAL 3000
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance
Price list
Test/Approvals
- Hydraulic test according to AWWA C503, Shell test 400 PSI (2 x Working pressure).
- FM Approved. UL and ULC listed.
Standards
- Designed according to AWWA C503
