AVK SWING CHECK VALVE, METAL SEATED, PN 10/16
Aluminium bronze seated BS body, metal seated disc, WRAS approved EPDM rubber
Anthony Whittam
Head of Smart Water and Pressure Management

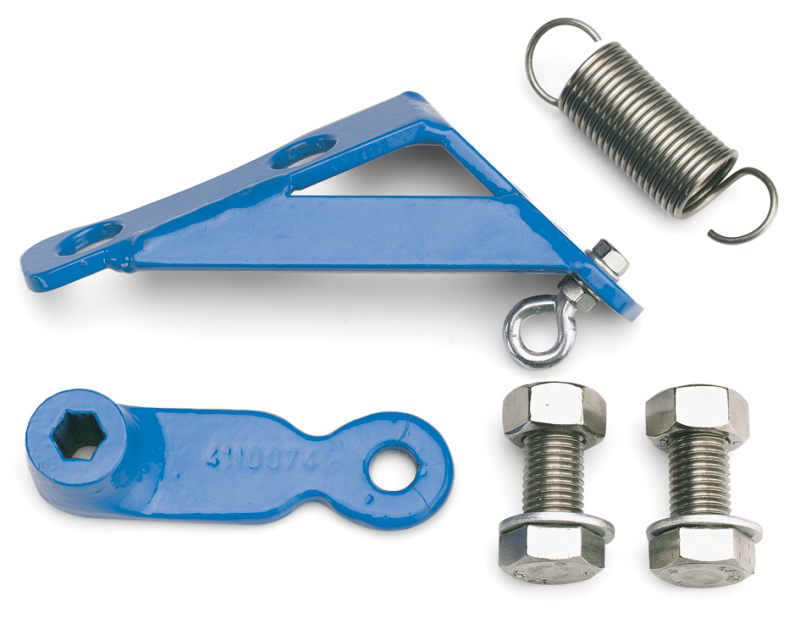

Metal seated swing check valve lever and weight kit for drinking water and neutral liquids to max. 70° C
AVK swing check valves provide easy access to maintenance simply by unscrewing a few bolts and lifting the bonnet assembly including shaft and disc out of the body. The disc is fully vulcanized with EPDM rubber and is mounted in a nylon bushing allowing it to move slightly horizontally and vertically to achieve compete tightness. AVK swing check valves are available with closed bushings and with free shaft for mounting of lever and weight/spring.
| Variant 41/36-003 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN400 |
| PN: | PN 16 |
Features
- Metal seat in high strength alu-bronze
- Shaft fitted in the bonnet allows for easy maintenance without removing valve from pipeline
- Shaft material 1.4404 (AISI 316L) stainless steel
- Position indicating lever with an adjustable weight that aids the disc in closing quickly to reduce water hammer
- Hinge of ductile iron coated with drinking water approved epoxy, firmly tightened around the shaft to eliminate play
- Bonnet gasket in a groove between bonnet and body to prevent blow-out
- All seals and coatings with contact to the fluid are approved for drinking water - coating is blue, 300µm fusion bonded epoxy
- Disc mounted in a flexible rubber bushing which allows it to tilt slightly in all directions and adjust exactly to the valve seat
- Bosses on each side of the valve seat allow for installation of pressure gauge, by-pass, etc.
- WRAS approved product
Downloads
Datasheet
Related Datasheets
Appendix
Certificate(s)
Installation, Operation & Maintenance
Animation
| AVK_swing_check_valve_animation.mp4 |
Guidelines
Price list
Reference nos. and dimensions:
Scroll for more info
| Ref. no. | DN mm |
Flange drillling |
L mm |
H mm |
H3 mm |
W mm |
W1 mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|---|
| 41-400-36-0180106 | 400 | PN16 | 900 | 470 | 765 | 801 | 476 | 345 |
3D drawings
Enquiry
Scroll for more info
Components
| 1. | Body | Ductile iron GJS-500-7 |
| 2. | Washer | Stainless steel A4 |
| 3. | Nut | Stainless steel A4 |
| 4. | Stud bolt | Stainless steel A4 |
| 5. | Face ring | Alu-bronze CC331G (AB1) |
| 6. | Seat ring | Alu-bronze CC331G (AB1) |
| 7. | Bonnet | Ductile iron GJS-500-7 |
| 8. | Bolt | Stainless steel A4 |
| 9. | O-cord | EPDM |
| 10. | Guide bush | EPDM |
| 11. | Washer | Stainless steel A4 |
| 12. | Split pin | Stainless steel A4 |
| 13. | Castle nut | Stainless steel A4 |
| 14. | Stud bolt | Stainless steel A4 |
| 15. | Hinge arm | Ductile iron GJS-500-7 |
| 16. | Disc | Ductile iron GJS-500-7 |
| 17. | Protective bush | EPDM |
| 18. | Washer | Stainless Steel 1.4401 (316) |
| 19. | Bolt | Stainless steel A4 |
| 20. | Bolt | Stainless steel A4 |
| 21. | Washer | Stainless steel A4 |
| 22. | Lever | Ductile iron GJS-500-7 |
| 23. | O-ring | EPDM |
| 24. | Bushing, open | Brass CW602N (CZ132) |
| 25. | O-ring | EPDM |
| 26. | Gasket | PA |
| 27. | Air plug | Stainless steel |
| 28. | Shaft | Stainless Steel 1.4401 (316) |
| 29. | Connector | Stainless steel 1.4408 |
| 30. | Spacer | Stainless Steel 1.4401 (316) |
| 31. | O-ring | EPDM |
| 32. | Bushing | Brass CW602N (CZ132) |
| 33. | Weight | Ductile iron GJS-500-7 |
| 34. | Set screw | Stainless steel A4 |
| 35. | Nut | Stainless steel A4 |
| 36. | Bolt | Stainless steel A4 |
Test/Approvals
- Hydraulic test according to EN 1074-1 / EN 12266 |
- Seat: 1.1 x PN. Body: 1.5 x PN.
Standards
- Designed according to EN 1074 - 3
- Face to face according to EN 558 Table 2 Basic Series 48
- Standard flange drilling to EN1092, PN 10/16
- WIMES 8.09 Compliant
- Drinking Water Inspectorate Regulation 31 compliant
