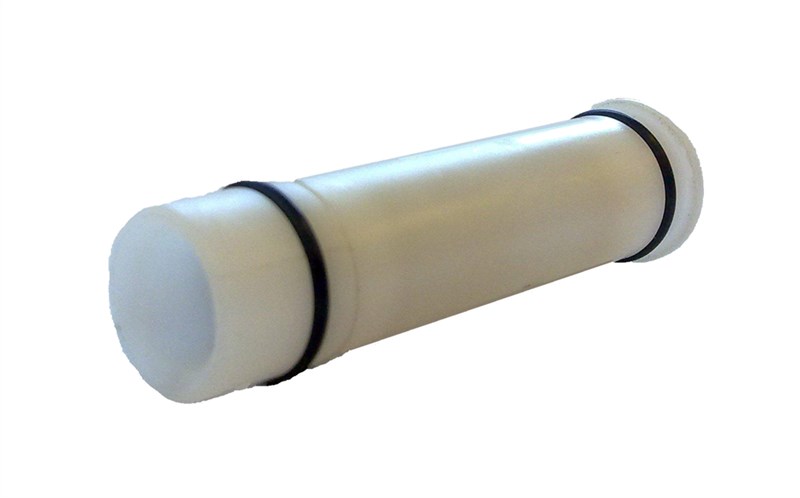

Donkin Flow Limitor (Emergency Flow Valve)
To GNI AM/SP/033. Fits into 25mm Service Pipe
Andy Hatton
National Sales Manager – Gas
Gas Flow Limitor (ECV) to GNI AM/SP/033. Temperature range: -20oC to +40oC. Inlet pressure 500mbar to 4.0 bar. Capacity 9 S.C.M.H. to 31 S.C.M.H.
The Donkin Flow Limitor is for direct insertion into the service pipe. The Donkin 25mm Flow Limitor is an emergency shut-off valve that provides service line safety, service line theft protection and automatic shut-off, remaining closed until repairs have been made. Once the fault has been rectified, a small bleed-by flow enables the service to regain pressure, equalising the pressure and allowing the unit to reset for normal operation.
| Variant 310/066-001 | |
|---|---|
| Connection: | No connection type specified |
| Material: | Polyoxymethylene (POM) |
| DN: | DN25 |
| PN: | PN 4 |
Features
- Lip type for direct insertion into the service pipe
- Tamper proof
- Maintenance free
- Direction of gas flow indicator permanently moulded into the valve to ensure correct installation
- Can be installed at any angle
- Bleed-by design provides automatic reset
Downloads
Price list
Datasheet
Installation, Operation & Maintenance
Reference nos. and dimensions:
Scroll for more info
| Ref. no. | DN mm |
Product PN Class |
Theoretical weight/kg |
|---|---|---|---|
| 310-025-00-6106 | 25 | PN 4 | 0.4 |
Enquiry
Scroll for more info

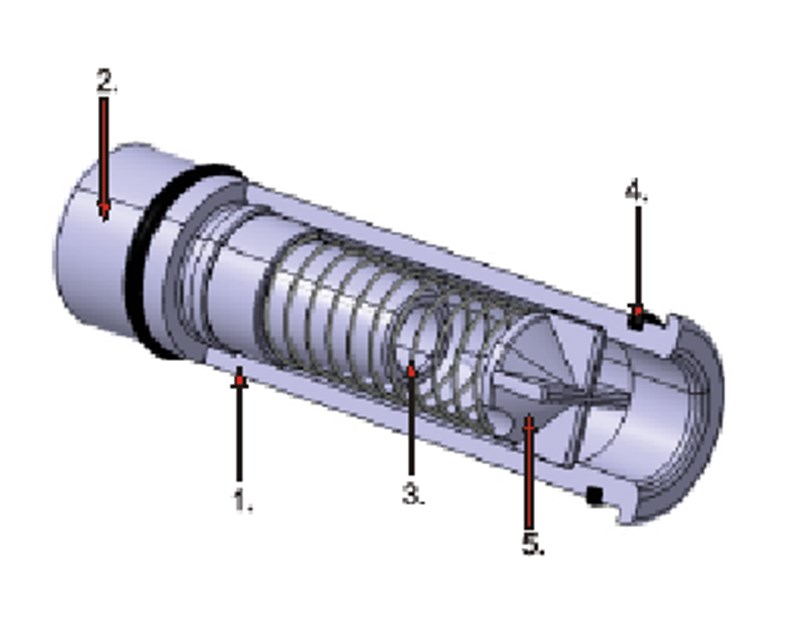

Components
| 1. | Body | POM |
| 2. | Diffuser Sleeve | POM |
| 3. | Spring | Stainless steel |
| 4. | O-ring | NBR rubber |
| 5. | Float | POM |
Test/Approvals
- Made in Great Britain
Standards
- Designed according to MSS-SP-115
