AVK Live Transfer Fitting
Gas Live Transfer Fitting. Maximum Working Pressure: 2 Bar. Temperature Range: -10°C to +70°C. Insulation essential for temperatures of 0°C and below.

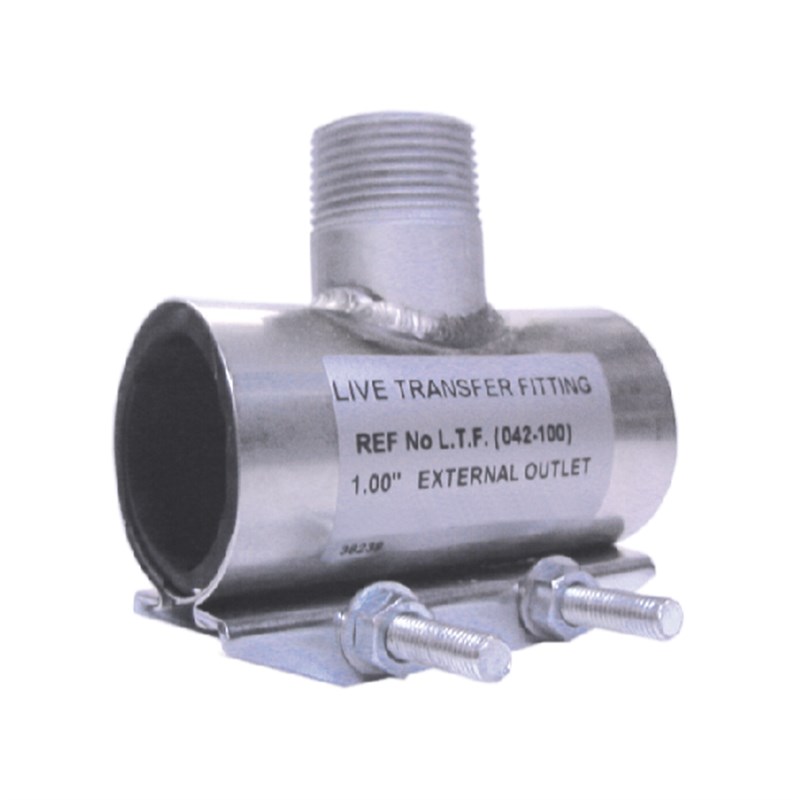

The Series 207/31 is a single band, stainless steel fitting designed to enable live connections to small diameter steel pipe systems. It is suitable for all ferrous pipes within the fitting range and designed for use with gas to a maximum temperature of +70°C.
| Variant 207/31-001 | |
|---|---|
| Connection: | All Pipe Types |
| Material: | Stainless Steel |
| DN: | DN25 - DN50 |
| PN: | PN 2 |
Features
- Outlet sizes 3/4" to 2" BSPT which can be combined with larger body size as required
- Threaded outlet for direct tapping into service pipes
- Quick and simple to install
- No special tools required
- Lightweight and easy to handle
- Corrosion resistant design, all Stainless Steel body
- Embodied carbon data available on request.
- OPTION:
- Stainless steel outlet
Downloads
Datasheet
Installation, Operation & Maintenance
Price list
Reference nos. and dimensions:
Scroll for more info
| Ref. no. | Size Inch |
DN mm |
DN/DN |
BSPT thread Inch |
Dd mm |
H mm |
H3 mm |
L mm |
Connection |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 207-31-0034-04071 | 25 | 32.5 - 35.5 | 3/4 | 20.5 | 47 | 84 | 100 | PIPESAVER | 0.5 | |
| 207-31-0042-04101 | 32 | 41.0 - 44.0 | 1 | 25.7 | 58 | 100 | 100 | PIPESAVER | 0.4 | |
| 207-31-0048-06121 | 40 | 47.0 - 51.0 | 1 1/4 | 34.4 | 66 | 143 | 150 | WRAPAROUND | 3.4 | |
| 207-31-0048-06131 | 50 | 47.0 - 51.0 | 1.25 | 48 | 74 | 150 | 150 | BSPT | 2.8 | |
| 207-31-0048-06151 | 40 | 47.0 - 51.0 | 1 1/2" | 40.3 | 75 | 152 | 150 | WRAPAROUND | 2.7 | |
| 207-31-0048-06161 | 48 | 47.0 - 51.0 | 1.5 | 48 | 79 | 155 | 150 | BSPT | 2.8 | |
| 207-31-0048-09161 | 50 | 47.0 - 51.0 | 1.5 | 40.8 | 80 | 180 | 225 | WRAPAROUND | 3.4 | |
| 207-31-0059-08211 | 50 | 58.0 - 62.0 | 2 | 51.80 | 81.3 | 150 | 200 | WRAPAROUND | 3.0 | |
| 207-31-0060-06201 | 50 | 59.0 - 63.0 | 2 | 51.3 | 91 | 147 | 150 | WRAPAROUND | 2.5 |
Enquiry
Scroll for more info
Components
| 1. | Outlet | Zinc painted steel |
| 2. | Body | Stainless steel |
| 3. | Gasket | NBR rubber |
| 4. | Bolt/nut/washer | Zinc plated steel |
| 5. | Lug | Zinc plated steel |
| 6. | Lug | Ductile iron |
Test/Approvals
- Hydraulic test according to 1.5 x PN
Standards
- Designed according to GIS/LC8-4
