AVK Pentobox - Water meter boundary box Grade B
Sealed, telescopic with a Grade B composite material surface box and push-fit
Mamoun Humayra
Water Product Manager
Water meter boundary box for installation in footpaths and driveways with regular traffic; able to withstand an 8 Tonne loading

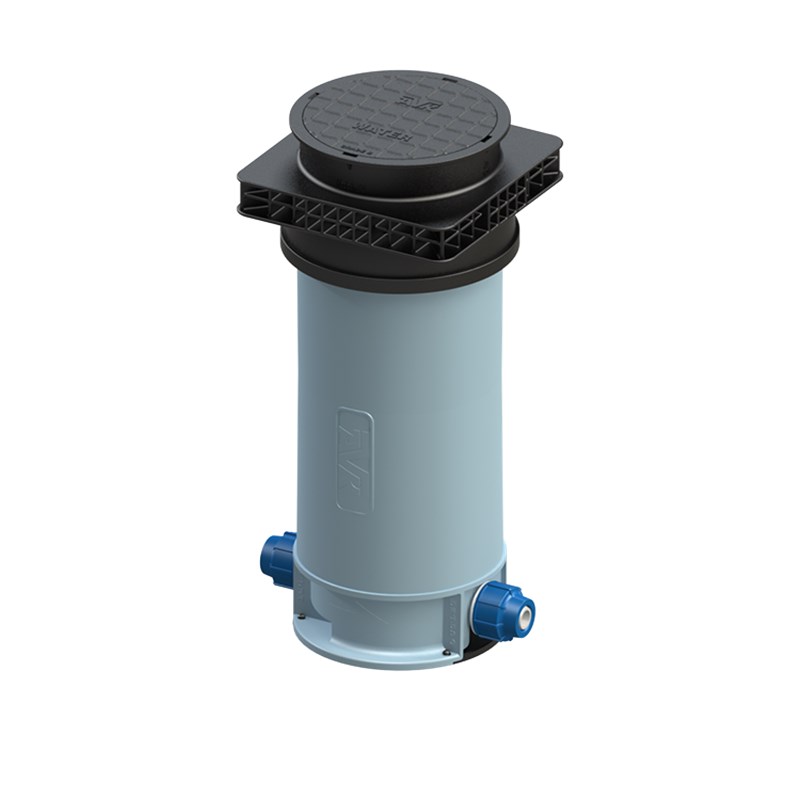

The S8054/2211 Pentobox is a Class 1.S.B fully sealed water meter boundary box with a composite material, Grade B loading surface box, which allows Automated Meter Reading (AMR) technology. The box is height adjustable, with patented push-fit, demountable connections. PN16
| Variant 8054/22-001 |
|---|
Features
- The unique round surface box element has an 8 Tonne rating in accordance with BS 5834-2: 2011 and is therefore suitable for footpaths and driveways with regular traffic
- Surface box materials allow uninterrupted AMR radio signals
- Metal detection plate for easy detection
- Lightweight, ensuring easy handling compared to equivalent iron boxes
- Surface box accommodates a 7° angle of tilt for easy surface alignment
- Fully sealed unit to prevent ingress of ground water and contaminants
- Telescopic height adjustment
- Manifold body is a one piece moulding reducing the risk of leakage
- Patented push-fit connections allow quick installation and easy disassembly
- 1 ½" BSP meter housing for a concentric water meter with a flow rate of Qn 1.5-2.5, incorporating a non-return valve
- ¼-turn ball valve with removable key for quick and secure isolation
Options:
- Push-fit connections - d20, 25, 32mm and ½" Heavy Gauge (HG)
- Threaded connections - ¾" BSP female
- Short valve key
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance
Features & Benefits
Product Brochure
Price list
Reference nos. and dimensions:
Scroll for more info
| Ref. no. | Pipe dia. mm |
SDR |
Connection |
Dc1 mm |
Do1 mm |
H2 mm |
H3 mm |
L mm |
Theoretical weight / kg |
|---|---|---|---|---|---|---|---|---|---|
| 8054-120-221110301000 | 20 | 9 | PUSHFIT | 170 | 250 | 40 | 520-830 | 300 | 5.5 |
| 8054-121-221110301000 | ½" | HG | PUSHFIT | 170 | 250 | 40 | 520-830 | 300 | 5.5 |
| 8054-125-221110301000 | 25 | 11 | PUSHFIT | 170 | 250 | 40 | 520-830 | 300 | 5.5 |
| 8054-132-221110301000 | 32 | 11 | PUSHFIT | 170 | 250 | 40 | 520-830 | 300 | 5.5 |
| 8054-326-221110301000 | - | - | ¾" BSP FEM | 170 | 250 | 40 | 520-830 | 300 | 5.5 |
Enquiry
Scroll for more info
Components
| 1. | Cover | PP |
| 2. | Frame | PP |
| 3. | O-ring | NBR rubber |
| 4. | Retainer ring | PP |
| 5. | Seal | EPDM |
| 6. | Guard | PP |
| 7. | Base | PP |
| 8. | Baseplate | PP |
| 9. | Manifold | POM |
| 10. | Nut | POM |
| 11. | Nut | POM |
| 12. | Blind plug | POM |
| 13. | Key | POM |
| 14. | Frost protection pad | Foam |
Test/Approvals
- WRAS approved Product
