AVK DOUBLE PENTOBOX – WATER METER BOUNDARY BOX GRADE C
Sealed, telescopic with a single square grade C composite material surface box, PN16
Mamoun Humayra
Water Product Manager
Double water meter boundary box for installation in footpaths; able to withstand a 1.5 Tonne loading

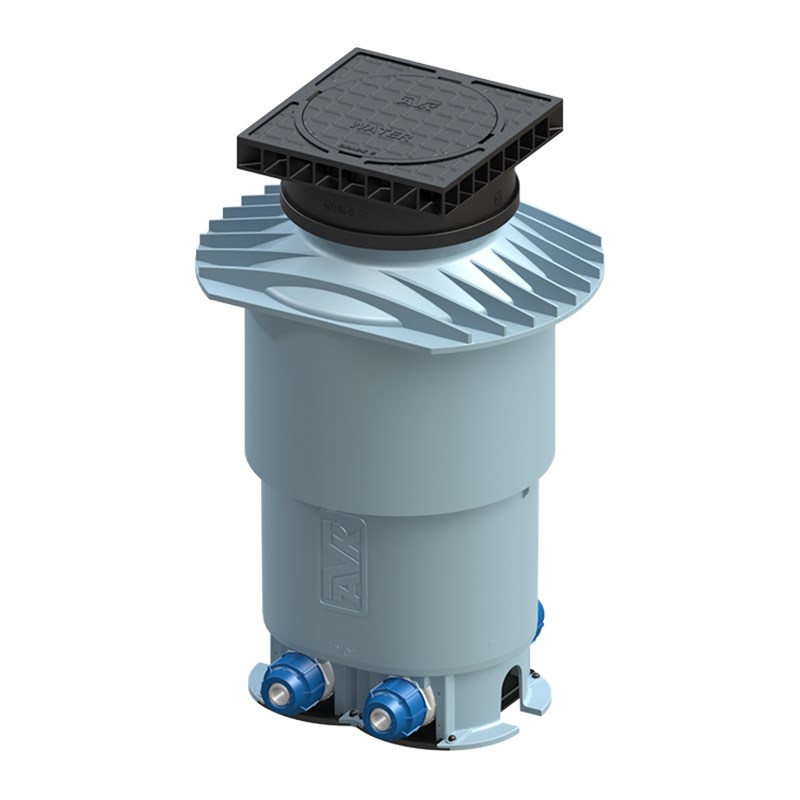

The S8054/63-001 DOUBLE PENTOBOX is a Class 1.S.C fully sealed double water meter boundary box with a single square composite material grade C loading surface box intended for block paving, allowing Automated Meter Reading (AMR) technology. Height adjustable box containing two side-by-side manifolds with patented demountable push-fit connections.
| Variant 8054/63-001 |
|---|
Features
- Only one boundary box required for two connections
- Time saving installation
- Less pavement disruptions
- The unique square surface box element exceeds the 500 Kg rating specified in BS 5834-2: 2011 and is therefore suitable for footpaths
- Surface box materials allow uninterrupted AMR radio signals
- Metal detection plate for easy detection
- Lightweight, ensuring easy handling compared to equivalent iron boxes
- Surface box accommodates a 7° angle of tilt for easy surface alignment
- Fully sealed unit to prevent ingress of ground water and contaminants
- Telescopic height adjustment
- Both manifolds are a one piece moulding reducing the risk of leakage
- Patented push-fit connections allow quick installation and easy disassembly
- 1 ½" BSP meter housing for a concentric water meters with a flow rate of Qn 1.5-2.5, incorporating a non-return valve
- ¼-turn ball valve with removable key for quick and secure isolation
Options:
- Push-fit connections - d20, 25, 32mm and 1/2" Heavy Gauge (HG)
- Threaded connections - 3/4" BSP female
- Short valve keys
- BSP meter housing with double non-return valve
Downloads
Datasheet
Certificate(s)
Price list

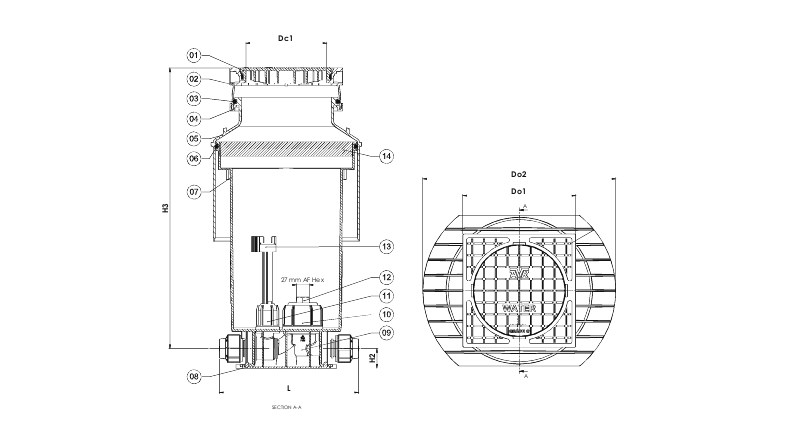

Components
| 1. | Cover | PP |
| 2. | Frame | PP |
| 3. | O-ring | NBR rubber |
| 4. | Retainer ring | PP |
| 5. | Guard | PP |
| 6. | O-ring | NBR rubber |
| 7. | Base | PP |
| 8. | Baseplate | PP |
| 9. | Manifold | POM |
| 10. | Nut | POM |
| 11. | Nut | POM |
| 12. | Blind plug | POM |
| 13. | Key | POM |
| 14. | Frost protection pad | Foam |
Test/Approvals
- WRAS approved Materials
Standards
- Class 1.S.C fully sealed Boundary Box under BS 5834-1: 2017
- Surface Box designed according to BS 5834-2: 2011
-
Push-fit joints meet the standards according to WIS 4-32-11
Tests:
- Hydraulic pressure test of 16 Bar
- Load tests exceeding 5 kN as per BS 5834-2: 2011
- Tested under conditions for water tightness as per BS 5834-1: 2017
- Meets the minimum head loss requirements as per BS 5834-1: 2017
- Tested under conditions for prevention against freezing as per BS 5834-1: 2017
