AVK PENTOBOX - WATER METER BOUNDARY BOX. DI Surface Box
Unsealed, telescopic with a square ductile iron grade B surface box, PN16
Mamoun Humayra
Water Product Manager
Water meter boundary box for installation in pavement and other pedestrian areas where hinged access is required; able to withstand an 5.6 Tonne loading

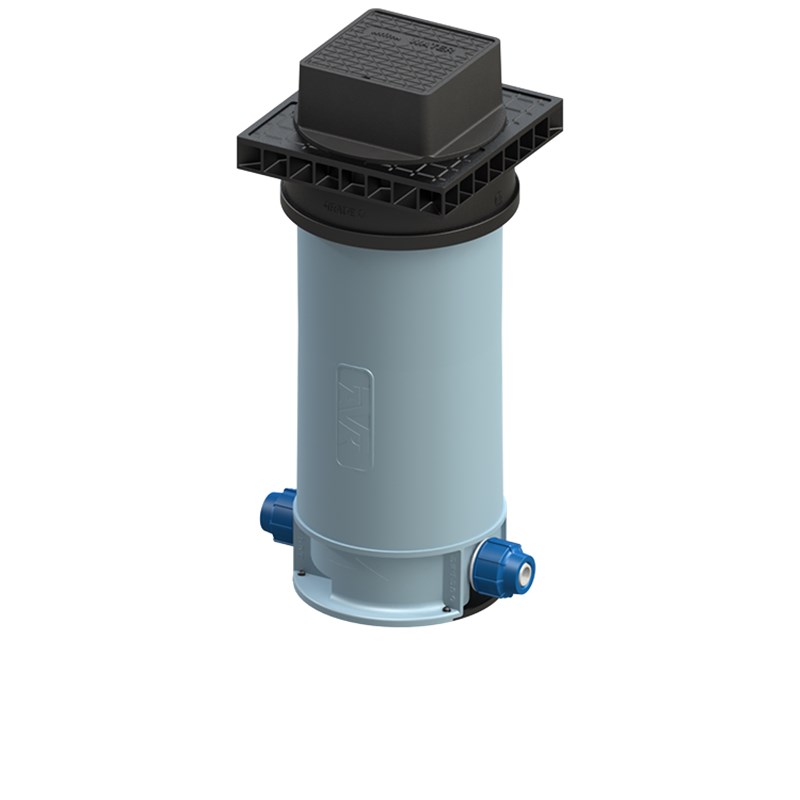

The S8054/82-001 Pentobox is a Class 1.S.B unsealed water meter boundary box with a square ductile iron grade B loading surface box intended for block paving, allowing Automated Meter Reading (AMR) technology. Height adjustable box with patented demountable push-fit connections.
| Variant 8054/82-001 |
|---|
Features
- The unique square surface box element has a 5.6 Tonne rating in accordance with BS 5834-2: 2011 and is therefore suitable for footpaths and driveways with regular traffic
- Surface box accommodates a 7° angle of tilt for easy surface alignment
- Telescopic height adjustment
- Manifold body is a one piece moulding reducing the risk of leakage
- Patented push-fit connections allow quick installation and easy disassembly
- 1 ½" BSP meter housing for a concentric water meter with a flow rate of Qn 1.5-2.5, incorporating a non-return valve
- ¼-turn ball valve with removable key for quick and secure isolation
- Unit can be made self-draining through in-built drainage points
Options:
- Push-fit connections - d20, 25, 32mm and ½" Heavy Gauge (HG)
- Threaded connections - ¾" BSP female
- Short valve key
Downloads
Datasheet
Certificate(s)
Price list

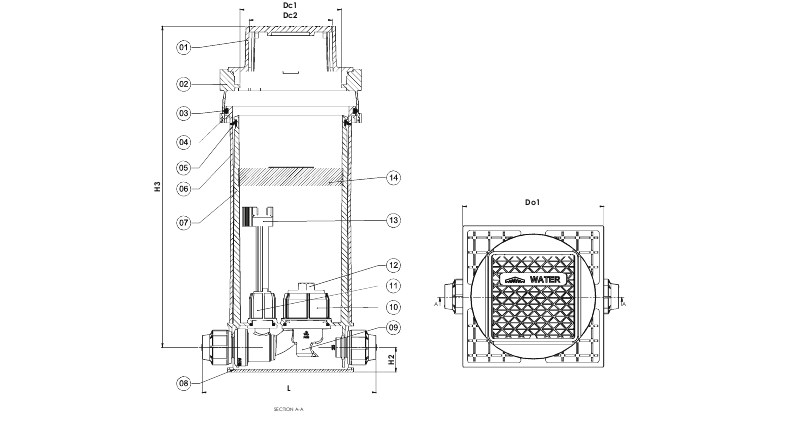

Reference nos. and dimensions:
Scroll for more info
| Ref. no. | Pipe dia. mm |
SDR |
Connection |
Dc1 mm |
Dc2 mm |
Do1 mm |
H2 mm |
H3 mm |
L mm |
Theoretical weight / kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 8054-120-821210601000 | 20 | 9 | PUSHFIT | 170 | 143 | 240 | 40 | 545-855 | 300 | 8.6 |
| 8054-125-821210601000 | 25 | 11 | PUSH | 170 | 143 | 240 | 40 | 545-855 | 300 | 8.6 |
| 8054-132-821210601000 | 32 | 11 | PUSHFIT | 170 | 143 | 240 | 40 | 545-855 | 300 | 8.6 |
| 8054-326-821210601000 | ¾" BSP F | 170 | 143 | 240 | 40 | 545-855 | 300 | 8.6 |
Enquiry
Scroll for more info
Components
| 1. | Ductile iron | |
| 2. | Frame | PP |
| 3. | O-ring | NBR rubber |
| 4. | Retainer ring | PP |
| 5. | Seal | EPDM |
| 6. | Guard | PP |
| 7. | Base | PP |
| 8. | Baseplate | PP |
| 9. | Manifold | POM |
| 10. | Nut | POM |
| 11. | Nut | POM |
| 12. | Blind plug | POM |
| 13. | Key | POM |
| 14. | Frost protection pad | Foam |
Test/Approvals
- WRAS approved Product
Standards
- Class 1.S.B fully sealed Boundary Box under BS 5834-1: 2017
- Surface Box designed according to BS 5834-2: 2011
-
Push-fit joints meet the standards according to WIS 4-32-11
Tests:
- Hydraulic pressure test of 16 Bar
- Load tested to 57 kN as per BS 5834-2: 2011
- Tested under conditions for water tightness as per BS 5834-1: 2017
- Meets the minimum head loss requirements as per BS 5834-1: 2017
- Tested under conditions for prevention against freezing as per BS 5834-1: 2017
