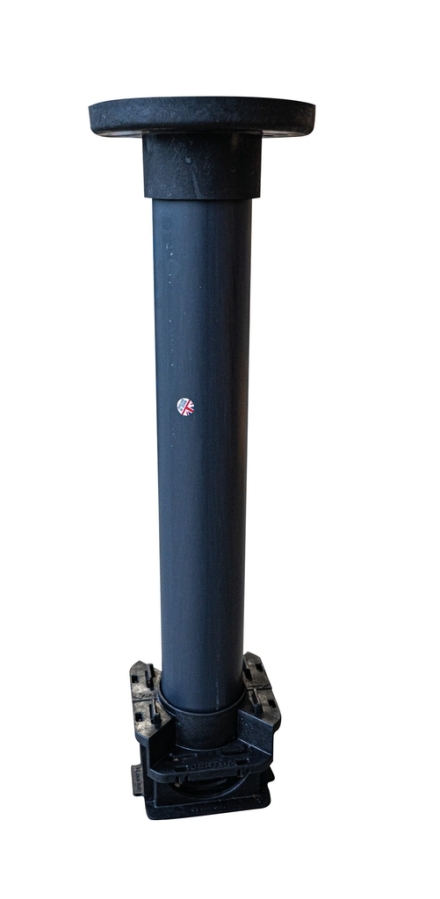

Donkin Certus Valve Installation and access kit
For use with Certus Valves.
To complement the Donkin Certus PE Valves. AVK offers a range of Installation and Access Kits to suit all requirements such as kitting options right up to a fully inclusive kit containing all the components needed for a good quality and fully accessible solution.
| Variant 85/090-001 |
|---|
Features
- Base unit fits both 32 and 63mm valves
- Sturdy construction prevents surface forces acting on the service pipe
- Orientates the valve vertically to ensure easy access with a Tee Key
- Protection cover prevents ingress of material blocking spindle access from the surface
- Makes installation easy and more consistent
- Kit options can save real life costs of installation
- Tee Keys designed specifically for PE Valves
- With surface box to BS 5834 Part 2 Grade C (available without surface box see 85/091-001)
Downloads
Datasheet
Installation, Operation & Maintenance
Price list
Reference nos. and dimensions:
Scroll for more info
| Ref. no. | H3 mm |
W mm |
Theoretical weight/kg |
|---|---|---|---|
| 85-999-090 | 1215 | 237 | 2.6 |
Enquiry
Scroll for more info
Components
| 1. | Base Plate Lower | HDPE |
| 2. | Base Plate Upper | HDPE |
| 3. | Pipe | PVC |
| 4. | Adaptor | HDPE |
| 5. | GRP | |
| 6. | Protection cover | PEX Foam |
Test/Approvals
- Made in Great Britain
