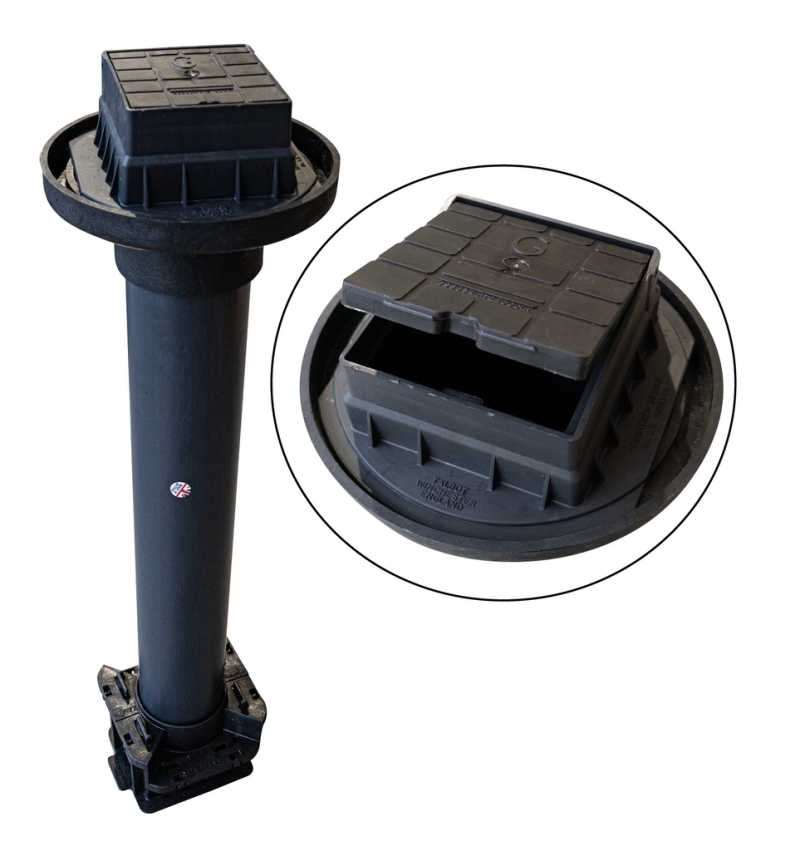

Donkin Certus Valve Installation and access kit
For use with Certus Valves.
To complement the new Donkin Certus PE Valves AVK can now offer a range of Installation and Access Kits to suit all requirements. This gives the customer a range of kitting options from purchasing just the valve, right up to a fully inclusive kit containing all the components needed for a good quality and fully accessible solution, removing the possibility of poor Installation.
| Variant 85/091-001 |
|---|
Features
- Base unit fits both 32 and 63mm valves
- Sturdy construction prevents surface forces acting on the service pipe
- Orientates the valve vertically to ensure easy access with a Tee Key
- Makes installation easy and more consistent
- Kit options can save real life costs of installation
- Tee Keys designed specifically for PE Valves
- Without surface box (available with surface box to BS 5834 Part 2 Grade C, see 85/090-001)
Downloads
Datasheet
Installation, Operation & Maintenance
Price list
Reference nos. and dimensions:
Scroll for more info
| Ref. no. | H3 mm |
W mm |
Theoretical weight/kg |
|---|---|---|---|
| 85-999-091 | 1142 | 237 | 2.3 |
Enquiry
Scroll for more info
Components
| 1. | Base Plate Lower | HDPE |
| 2. | Base Plate Upper | HDPE |
| 3. | Pipe | PVC |
| 4. | Adaptor | HDPE |
Test/Approvals
- Made in Great Britain
