AVK SMART WATER, VIDI POSITIONER WITH EXTERNAL ANTENNA
Position indicator for BS5163 gate valves
AVK UK
Gas & Water Sales

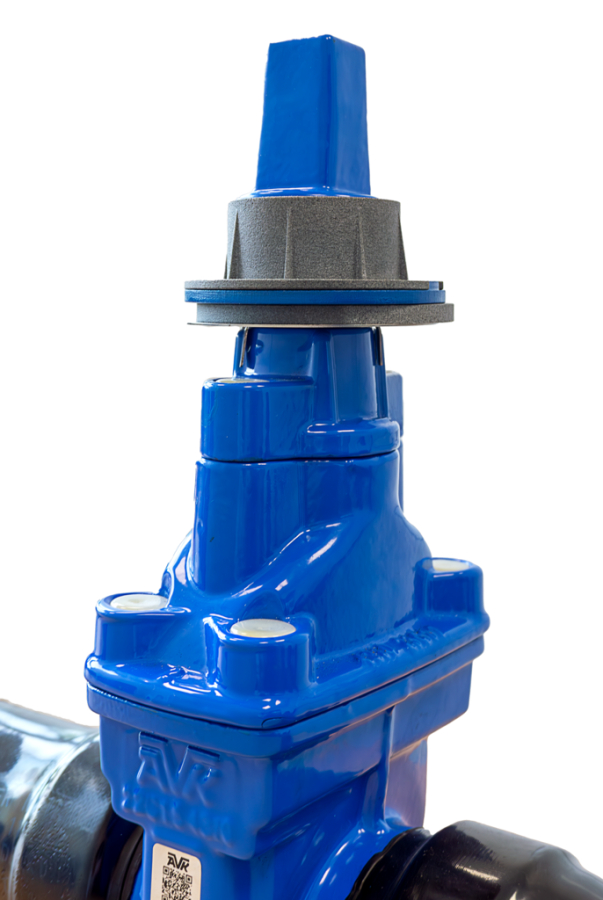

VIDI Positioner with external antenna is a battery-operated device that detects the open/close position of a gate valve and transmits data wirelessly.
VIDI Positioner is a smart device for indicating the position of gate valves. It detects the open/close position of a gate valve and transmits the data wirelessly. The VIDI Positioner is designed for direct mounting on BS5163 gate valves. After installation and activation, the device transmits information about the position of the valve to the VIDI Cloud platform or to a third-party software (e.g., SCADA or GIS).
The VIDI Positioner includes an external antenna with 5 metre cable to allow installation to suit the local environment. For example, where valves buried deep underground to maximise the communication with the antenna mounted immediately below chamber lid, or in remote slave chambers / above ground cabinets.
VIDI Positioner provides water utilities with valuable insights into the use of valves by remotely monitoring the position of the valve by indicating whether it is open, close, or any percentage in between. Based on the provided information, water utilities can optimise the operation of the water distribution network, extend the lifetime of assets, efficiently lower water loss.
| Variant 3004/100-002 |
|---|
Features
Positioner:
- Communication: NB-IoT (band 8 & 20) or LoRa® (868MHz)
- Detects the position of the valve and transmits data to the VIDI Cloud or a third-party software
- Material: Robust plastic cover, IP68*
- Easy provisioning and configuration via NFC (via AVK Assist app)
- Operating temperature: -20 up to +65 °C
- Fits on: BS5163 gate valves using suitable adaptors
- Accuracy: A quarter of a full turn (90°)
- Transmits data immediately when the valve position change and retransmit the value after 5 min, 10 min, 1 hr, 6 hrs, 12 hrs, 24 hrs.
- Transmits a keep-alive signal every 24 hrs if the position has not changed
Battery:
- Replaceable battery with up to 10-year lifespan**
- Max. voltage output: 3.6 V
- Size: 1 x D-cell (NB-IoT) and 1 x C-cell (LoRa®)
- Capacity / cell: 13000 mAh (NB-IoT) 8500 mAh (LoRa®)
* IP68: Maximum 24 hours of continuous submersion at 1 meter depth.
** Battery life depends on installation, environmental conditions and user interactions. Installation in areas with poor signal, low temperatures, use of iron covers or frequent network reconnections can affect battery life.
Downloads

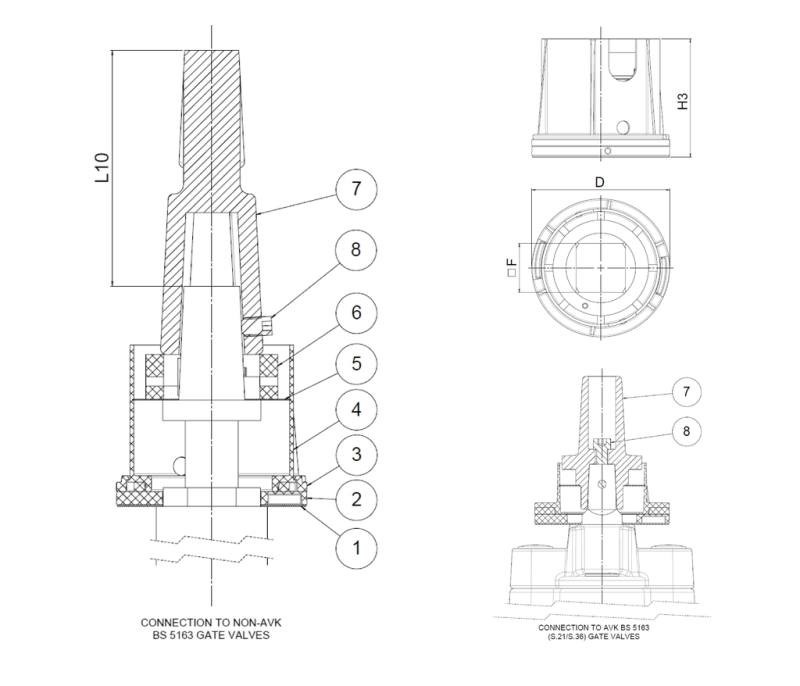

Reference nos. and dimensions:
| Ref. no. | Connection |
DN mm |
H3 mm |
L10 mm |
D mm |
F mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|
| 3004-100-008-000 | AVK S.21/35 & S.36 | 46 | - | 101 | 33.5 | 1.3 | |
| 3004-100-009-000 | AEON ECOVALVE | 86.5 | 100 | 101 | 36 | 2.1 | |
| 3004-100-010-000 | VAG EKOPLUS - ERHARD INFINITY | 96.5 | 100 | 101 | 36 | 2.2 | |
| 3004-100-011-000 | SAINT GOBAIN | 96.5 | 100 | 101 | 36 | 2.1 | |
| 3004-100-013-000 | VAG BETA | 96.5 | 100 | 101 | 36 | 2.1 |
Components
| 1. | Stainless steel 304 | |
| 2. | ASA plastic Luran S 778T | |
| 3. | ASA plastic Luran S 778T | |
| 4. | Spacer | PA |
| 5. | Lock ring | Stainless steel 304 |
| 6. | PA | |
| 7. | Ductile iron | |
| 8. | Fastener | Steel 8.8 |
