AVK Smart Level Sensors Wastewater case study

Preventing Flooding in a Residential Garden

AVK Smart Level Sensors. A Proven Effective Solution

Background - Risk of Flooding

A customer faced a significant risk of flooding due to the potential bursting of a rising main located in a garden. The rising main was under high internal pressure, increasing the likelihood of a burst. An AVK UK wastewater air valve (701/95) was also located within the sealed chamber.

The Challenge - Monitoring Water Levels in a Sealed Chamber

The customer needed a reliable solution to monitor the water level within the chamber and provide early warnings to prevent flooding. The chamber’s sealed cover meant that rainwater could not cause flooding, but a burst rising main or a leaking air valve could.

If the potential risks of a bursting rising main are not addressed, several serious issues could arise as a result, including flooding, resulting in property damage and structural damage, health hazards from contaminated water, environmental impact from soil contamination and loss of biodiversity, as well as financial costs in addressing the aftermath of a flood.

AVK Smart Water Solution

The customer contacted AVK UK for assistance, and a Level sensor was recommended to monitor the chamber’s water level. The Level sensor was installed and commissioned within minutes, offering a quick and effective solution.

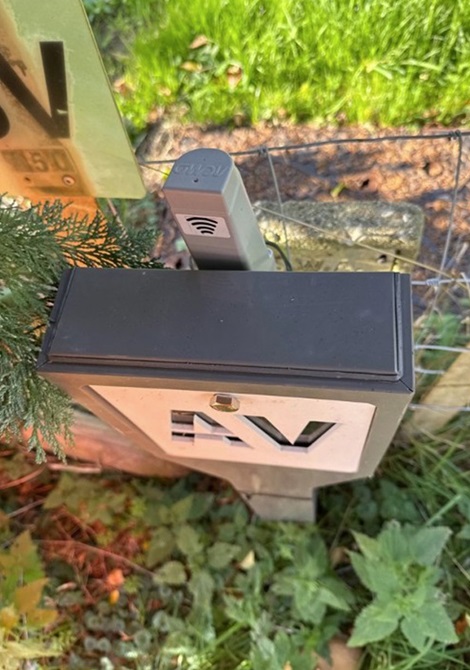

Level Sensor installation

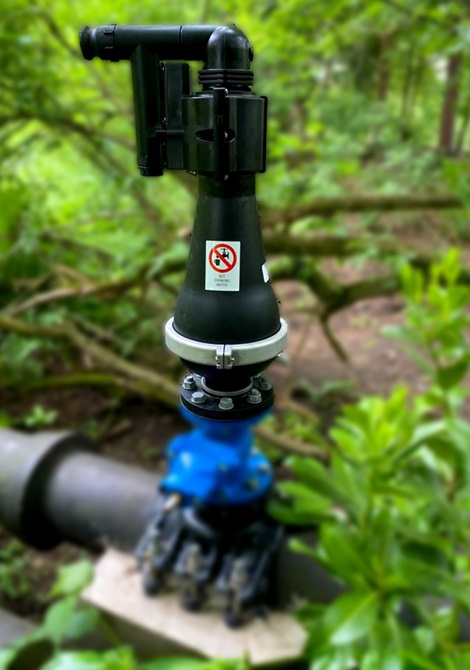

Level sensor on wastwater air valve

Left image above shows the sensor installation. Right image shows AVK's 701/95 smart air valve at work on another successful installation.

Implementation - An Early Warning System

The Level sensor was set up to provide an early warning system. The device monitors the water level within the chamber and sends an alarm to the customer if the water surpasses a predefined threshold. This alert prompts the customer to inspect the air valve and chamber, to then be able to take necessary actions to prevent flooding.

Outcome - An Effective Solution

The Level sensor has proven to be an effective solution for the customer. By providing timely alerts, it helps prevent flooding caused by a burst rising main or a leaking air valve. The customer can now monitor the chamber’s water level and respond promptly to any potential issues, ensuring the safety of a customer’s garden.

Conclusion - Protection Against Water Damage

AVK UK’s quick response and innovative solution have successfully addressed the customer’s flooding risk. The Level sensor’s early warning system offers peace of mind and protection against potential water damage, demonstrating AVK UK’s commitment to customer satisfaction and effective problem-solving.

Summary

AVK UK offers a comprehensive range of smart monitoring solutions, including Level, Pressure, Temperature, Flow,  Open/Close sensors, all designed to enhance network visibility and operational efficiency. In this case, the VIDI Level sensor provided a rapid and reliable method for monitoring water levels in a high-risk chamber, helping prevent flooding. Combined with AVK’s robust wastewater air valves and advanced pressure management expertise, the solution exemplifies how smart technology and proven valve design can work together to mitigate risk and protect infrastructure.

Contact us about AVK Smart Water

Contact our expert, Anthony Whittam about your project or to simply know more about AVK Smart Water capabilities and products click here to email directly.

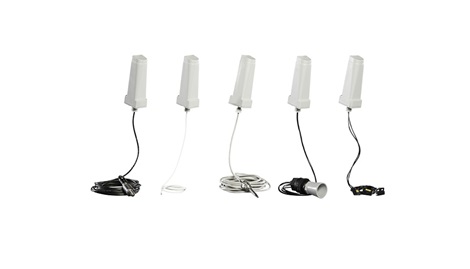

AVK smart water range of  VIDI sensors

Smart VIDI Level Sensor

Technical Details

AVK UK Level Sensor (VIDI Level). Series 3001/004-001
Type: Battery-operated device for measuring distance to the nearest surface
Communication: NB-IoT (band 8 & 20)
Range: 0.3 to 5 meters with an accuracy of ± 5 mm
Battery Life: Up to 10 years, depending on installation and environmental conditions
IP Rating: IP67

See the full range

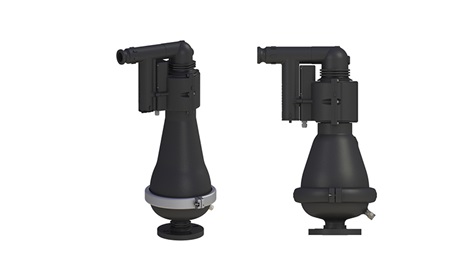

AVK Smart Air Valve Range

AVK Smart Air Valves

AVK UK Wastewater Air Valve (701/95)
Material: Reinforced nylon body and base, 100% corrosion-free
Pressure Range: 0.05 to 16 bar
Temperature Range: Suitable for wastewater treatment up to 60°C (temporarily up to 90°C)
Design Features: Large air gap between liquid and sealing system to ensure reliable function even with aggressive liquids, Spring between stem and float to compensate for slight pressure changes,
Lightweight for easy handling and installation

See the full range

Case Study

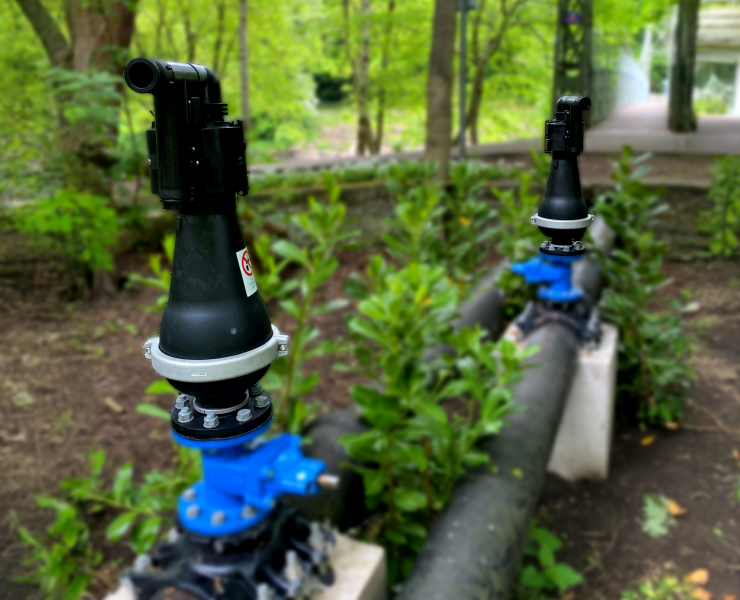

AVK UK's Smart Air Valves: Preventing Catastrophic Failures
