Plug and Play

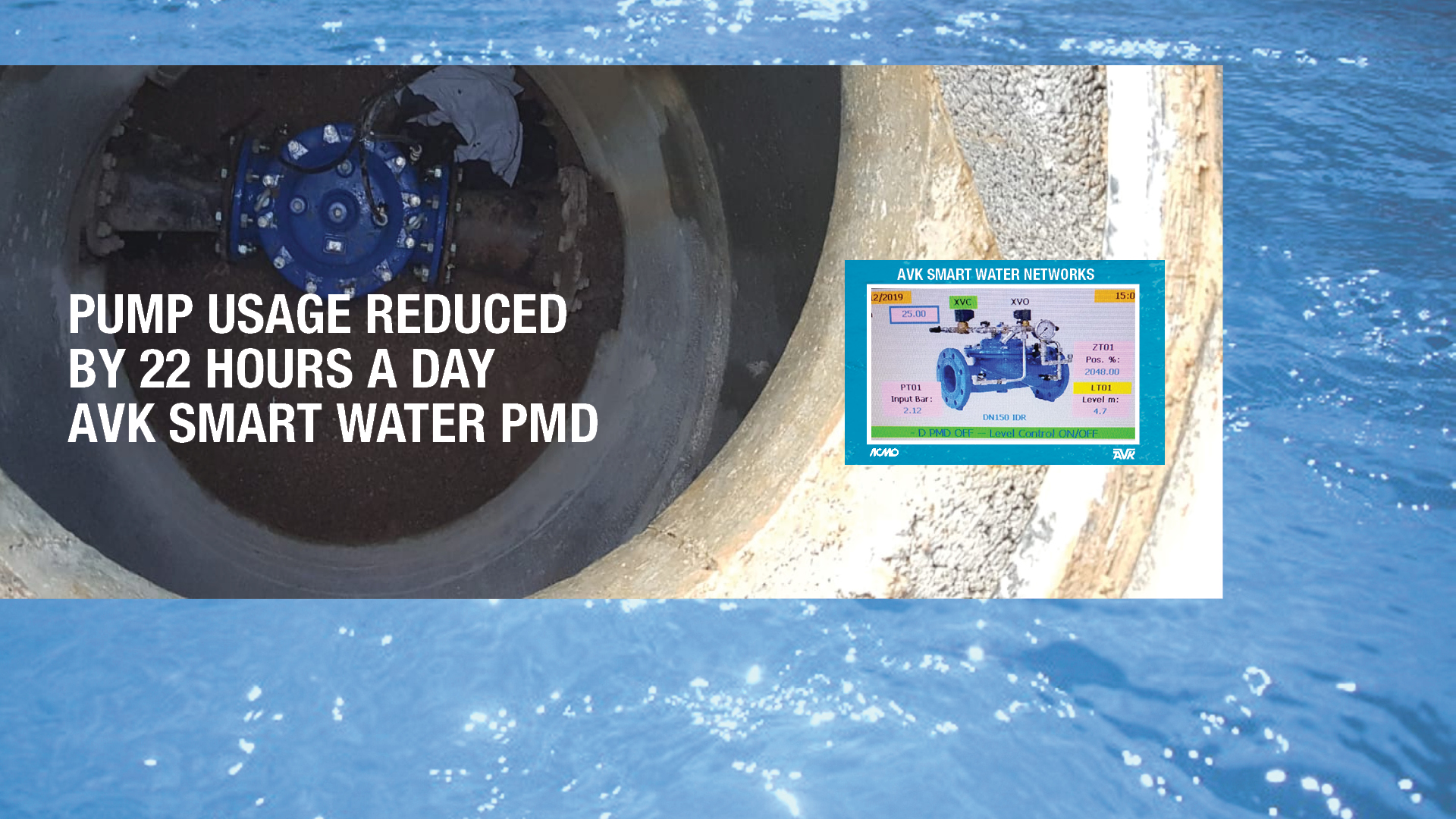

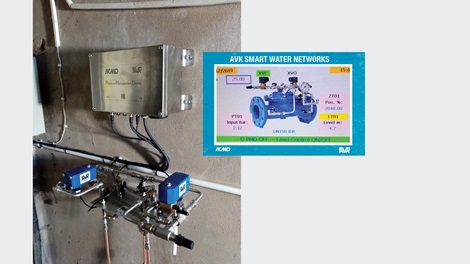

The AVK Smart Water PMD is a ‘plug and play device’ that is capable of measuring pressure, flow and level; it can be fitted to a wide variety of different valve types. In the case of reservoir, an AVK Series 879 dual-solenoid control valve is installed below ground. It is linked, via a ducted hydraulic drive, to the associated PMD and valve controls housed above ground in a stone-built booth some 20m away. The PMD has now been running successfully for over four months.

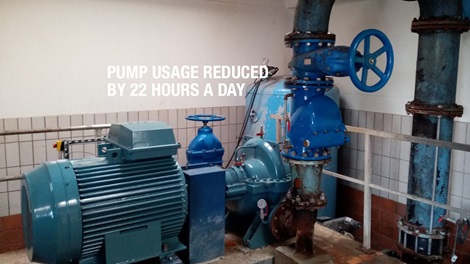

Prior to the installation of the AVK Smart Water PMD, the pumps at the Charleville reservoir had worked continuously 24/7 to maintain the reservoir at full capacity. Now, the reservoir inlet (the location of the control valve and PMD) is closed off to allow the water level in the reservoir to drop before the pumpsare activated.
This has brought two major benefits:
Water quality has improved due to increased water turnover, and there have been huge energy savings as the pump’s activity has been reduced by 22 hours per day.
It is projected there will also be a major impact on the longevity of the pumps.
Internet of Things
Whilst the reservoir is a closed-loop installation, the full benefit of smart water devices like the AVK Smart Water PMD are realised when they are distributedacross the water network. The ability of smart water devices to send and receive data and instructions via the Internet of Things (IoT) enables water companies to respond to network events in real time. It is envisaged that the AVK Smart Water PMD will be integrated into the water company’s SCADA (Supervisory Control and Data Acquisition) system.
The AVK Smart Water PMD is just one of a portfolio of smart water network products being launched by AVK during 2020. It places AVK Smart Water in the vanguard of companies developing solutions for water companies in this frontier technology.
For further details on AVK Smart Water Solutions please contact David Hurley
